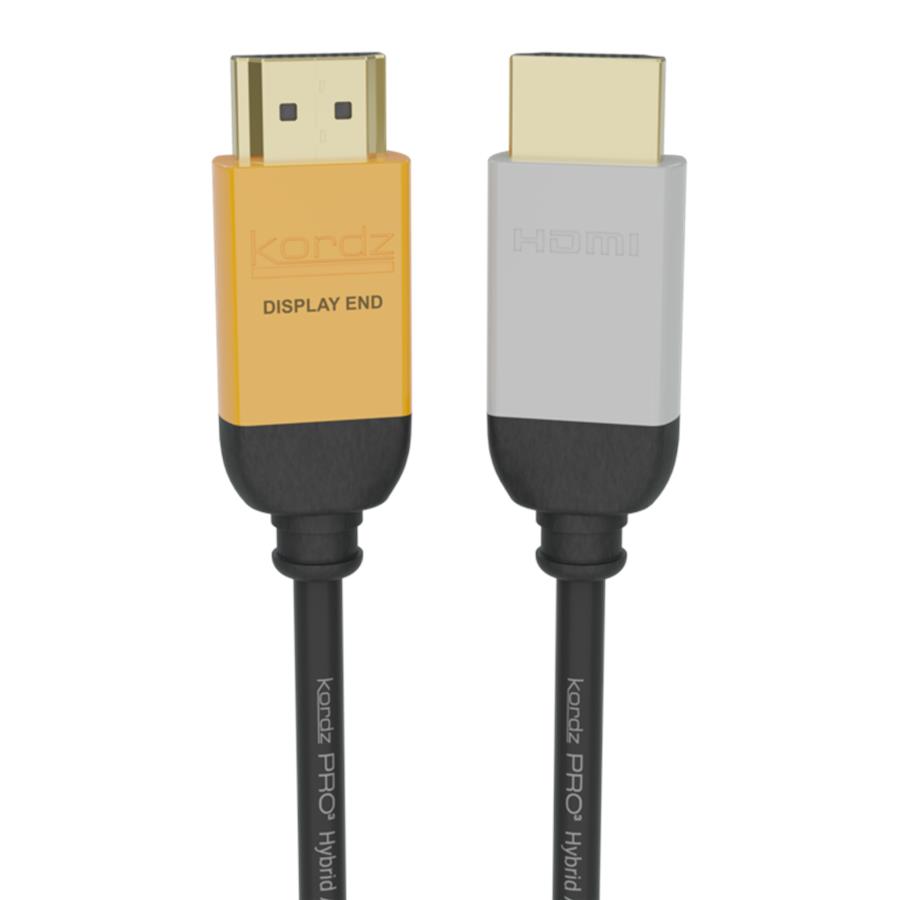

Kordz PRO3 Active Optical HDMI Cable (20M) Foil Bag
Product Ref: K26216-2000-CH
MPN: K26216-2000-CH
Kordz PRO3Active Optical HDMI Cables exceed the standards of performance and flexibility, delivering 18Gbps 4K resolution over long distances and they are optimised through Active Optical Technology. Fully shielded high quality ABS shells and 1kg connectors provide resilience in demanding applications where a cost-effective, reliable solution is required. Fit Kordz PRO3Active Optical HDMI Cables with confidence, backed by the Kordz warranty.
Select Option
Technical Specifications
HDMI CERTIFICATION 10.0m – 20.0m ACTIVE OPTICAL
DPL Labs Certified Data Rate: 6.0Gbpsc, 17.82Gbps aggregate
Supported Data Rate: > 6.0Gbpsc,17.82Gbps (4K UHD)
Supported HDMI Clock: 27-340MHz
MECHANICAL
Cable Diameter: 4.70mm±0.15mm / 0.19” Ø
Mounting Length: 50.0mm/1.96”
Cable Bend Radius: 20.0mm/0.78”
Retention Force (nom): ≥ 9.8N (1kg / 2.2lbs) +10/-5%
CONSTRUCTION
TDMS: OM3 (50/125) optical fibre
Conductors: Tinned copper, 32-26AWG
Insulation on TMDS: CMG Composite Polymer
Insulation on 4C + HEAC Pairs: FEP / FRPVC
Shielding Overall: AL/Mylar
Cable Jacket Material: CMG FRPVC Composite, 10-20m lengths
HDMI Connector Shell: Premium Gauge folded steel, 1µ” 24K Gold-plated
HDMI Connector Pins: Solid OFC, 15µ” 24K Gold-plated
Active Technology: Directional, In-shell Optical Light Engine
Termination: Contactless IR induction soldering
HDMI Backshells: ABS front shell with PVC injection moulded boot and strain relief
Product Features
Data Rate: Up to 18.2Gbps (TMDS mode)
Video Resolution: Up to 8K (7680 x 4320) / 10K (10240 x 4320)
Video Refresh Rate: Up to 240 frames per second
Colour Depth: Up to 16 bits
Colour Formats: RGB 4:4:4 / Y’CBCR4:2:2 / Y’CBCR4:2:0
Content Protection: Up to HDCP 2.2 supported
Audio Sample Rate / Channel: Up to 192KHz
Audio Sample Size: Up to 24 bits
Audio Channels: Up to 32 channels
Audio Formats Supported: DTS Master, DTS:X, Dolby TrueHD, Dolby Atmos
Auxiliary HDMI Features Supported: Consumer Electronic Control (CEC), Auto Lip-Sync Correction, Audio Return Channel (ARC), Enhanced Audio Return Channel (eARC), High Dynamic Range (HDR)
