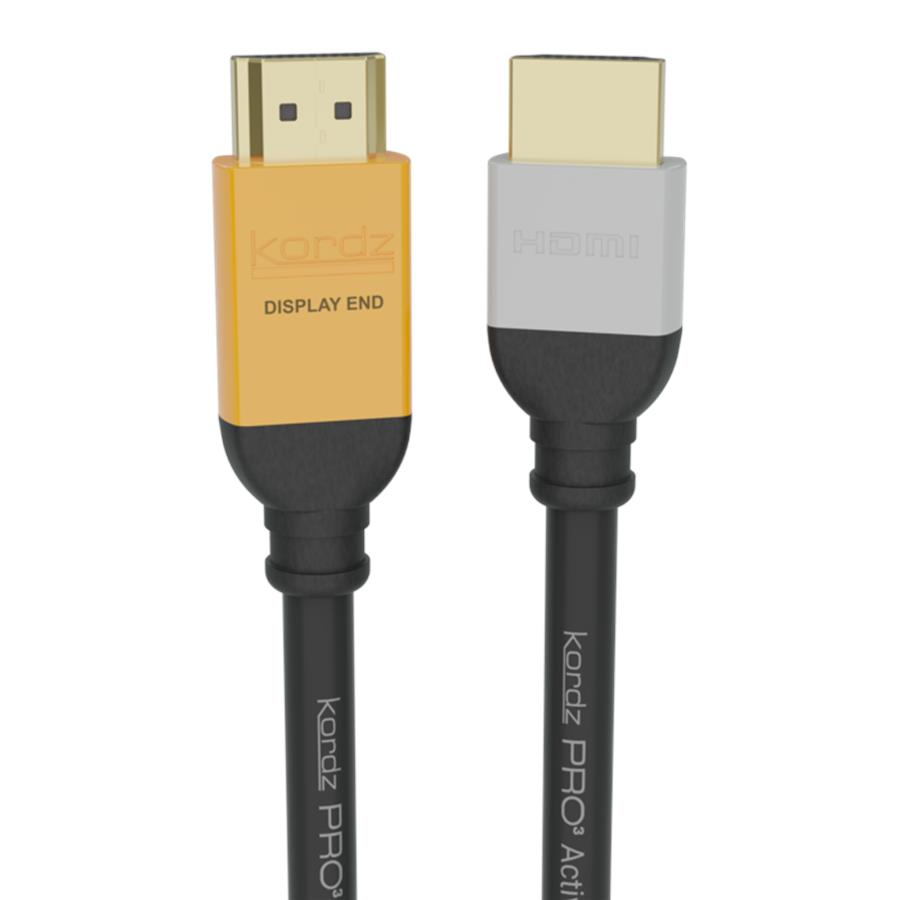

Kordz PRO3 Active Copper HDMI Cable (12.5M Foil Bag
Product Ref: K26116-1250-CH
MPN: K26116-1250-CH
Kordz PRO3Active Copper HDMI Cables exceed the standards of performance and flexibility, delivering 18Gbps 4K resolution over long distances and they optimised through Active Copper Technology. Fully shielded high quality ABS shells and 1kg connectors provide resilience in demanding applications where a cost-effective, reliable solution is required. Fit Kordz PRO3Active Copper HDMI Cables with confidence, backed by the Kordz warranty.
Select Option
Technical Specifications
HDMI CERTIFICATION 7.5m – 12.5m ACTIVE COPPER
DPL Labs Certified Data Rate: 6.0Gbpsc, 17.82Gbps aggregate
Supported Data Rate: > 6.0Gbpsc,17.82Gbps (4K UHD)
Supported HDMI Clock: 27-340MHz
MECHANICAL
Cable Diameter: 28 AWG 6.8mm | 0.26in Ø
Mounting Length: 50.0mm/1.96 in
Cable Bend Radius: 40.8mm | 1.60in
Retention Force (nom): ≥ 9.8N (1kg / 2.2lbs) +10/-5%
CONSTRUCTION
TDMS: HDPE, Foamed-PE, length-dependent
Conductors: Solid 28 AWG OFC, length dependent
Insulation on 4C + HEAC Pairs: HDPE
Shielding Overall: AL/Mylar, 100% coverage + Al-Mg alloy braid, min 65% coverage
Cable Jacket Material: UL CMG fire-rated PVC composite materials
HDMI Connector Shell: Premium Gauge folded steel, 1µ” 24K Gold-plated
HDMI Connector Pins: Solid OFC, 15µ” 24K Gold-plated
Termination: High-Frequency Soldering
HDMI Backshells: ABS front shell with PVC injection moulded boot and strain relief
Product Features
Data Rate: Up to 18.2Gbps (TMDS mode)
Video Resolution: Up to 8K (7680 x 4320) / 10K (10240 x 4320)
Video Refresh Rate: Up to 240 frames per second
Colour Depth: Up to 16 bits
Colour Formats: RGB 4:4:4 / Y’CBCR4:2:2 / Y’CBCR4:2:0
Content Protection: Up to HDCP 2.2 supported
Audio Sample Rate / Channel: Up to 192KHz
Audio Sample Size: Up to 24 bits
Audio Channels: Up to 32 channels
Audio Formats Supported: DTS Master, DTS:X, Dolby TrueHD, Dolby Atmos
Auxiliary HDMI Features Supported: Consumer Electronic Control (CEC), Auto Lip-Sync Correction, Audio Return Channel (ARC), Enhanced Audio Return Channel (eARC), High Dynamic Range (HDR)
