DELUXX 16:9 Cinema SoundVision FixedFrame (243 x 136cm) - (110")

Product Ref: 1000004650

MPN: 4250065000095

DELUXX Cinema Frame screen SlimFrame 243 x 136cm, 110" - SOUNDVISION

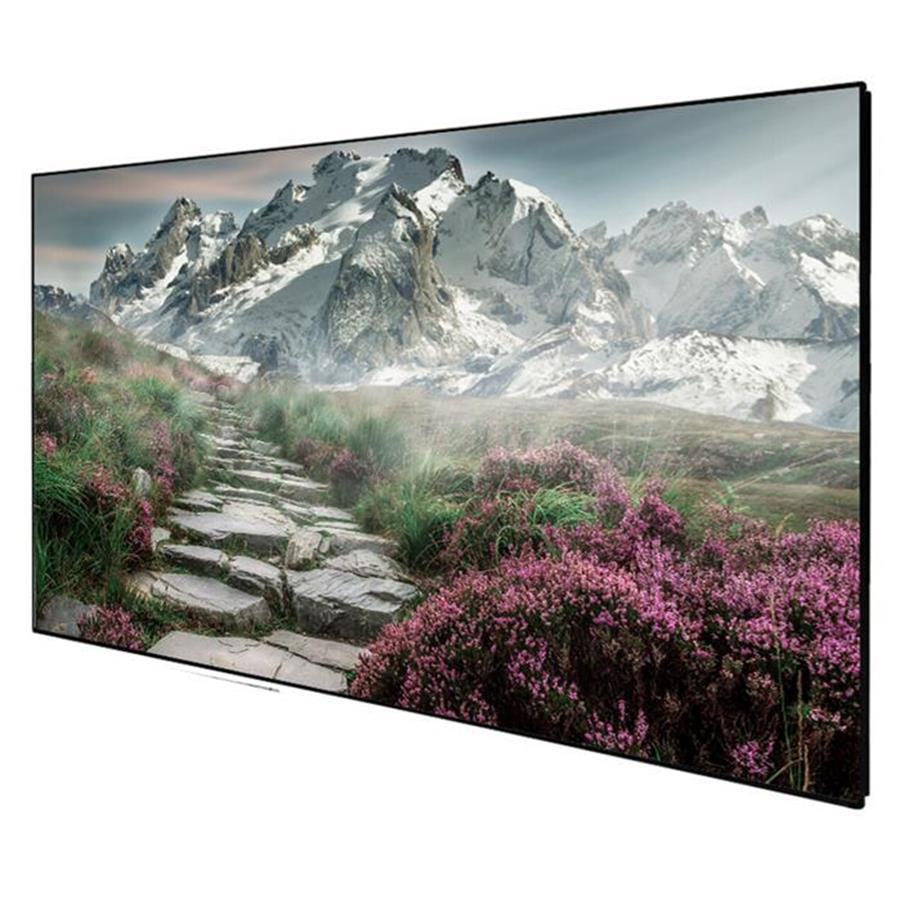

The DELUXX SlimFrame is a high-quality frame screen with an extremely slim, velour-covered frame profile of 12mm width.This means the DELUXX SlimFrame is like having a flat-screen TV on your wall.

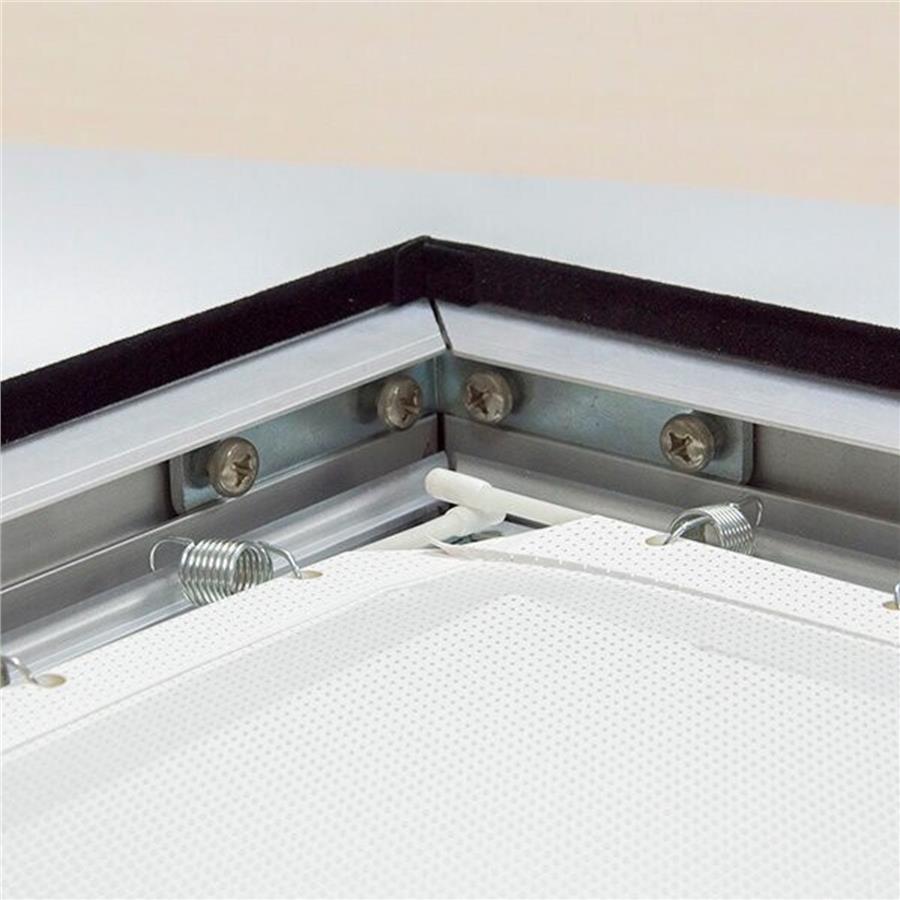

The base frame is screwed together from 4 aluminium profiles and is rigid and permanently dimensionally stable. The velour coating prevents reflections at the edges and ensures perfect image delimitation and fatigue-free viewing.

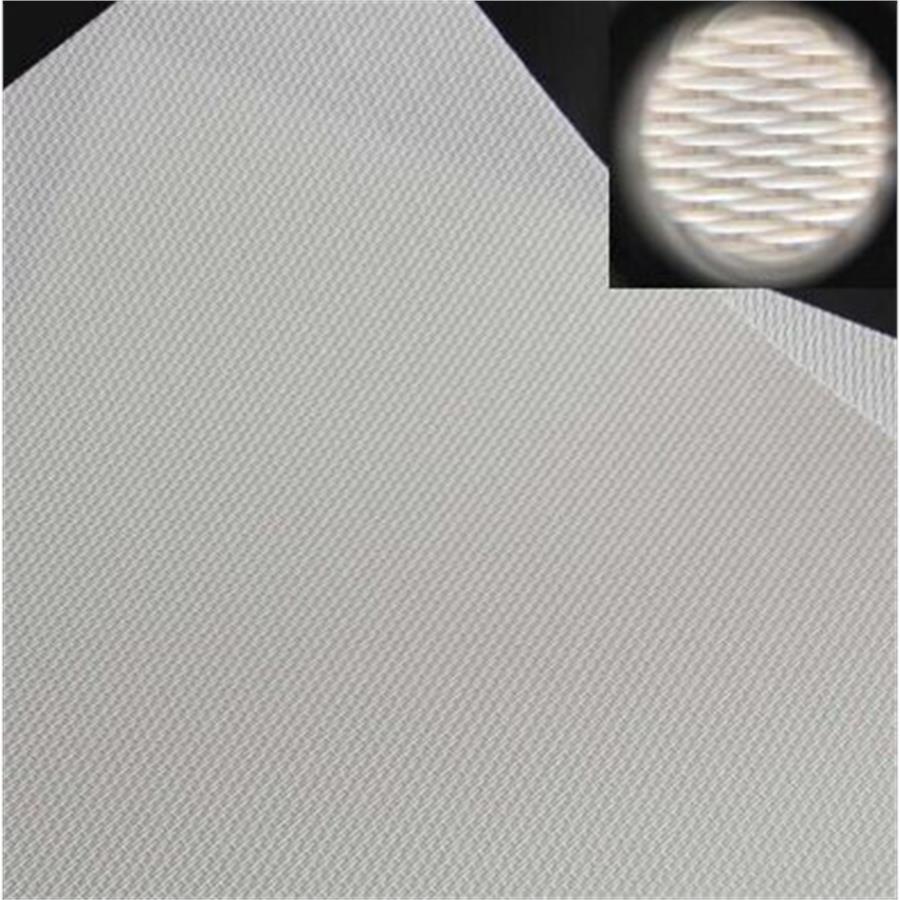

With the new SOUNDVISION fabric, DELUXX provides a very fine surface structure that is rarely found on acoustically transparent cloths. Made from high-precision woven fiberglass fibers, it creates a surface with extremely small acoustically transparent holes that can prevent a moiré effect. The picture is thus improved and noticeably more natural. DELUXX is so confident in the fabric, it is suitable for 4k projections.



The sound transmission reaches excellent values, up to 7,500Hz the attenuation is barely measurable 2-3db, up to 10,000Hz 5dB attenuation can be measured.

From 18,000Hz, the attenuation is just over 5dB and continues to increase with the frequency. The human ear hears on average up to 20,000 Hz. Very good values ​​for the SOUNDVISION cloth.



A very homogeneous image reflection with a wide viewing angle of 160° makes this "TYPE D" (diffuse reflective) fabric, the ultimate choice for all projection systems.

The almost neutral gain of 1.1 offers a little brightens increase without falsifying colour values.

Select Option

    Technical Specifications

    Name DELUXX Cinema Frame screen SlimFrame 243 x 136cm, 110" - SOUNDVISION

    Article number 1000004650GTIN/EAN 4250065000095

    Manufacturer SKU 1000004650

    Brand DELUXX

    Product Type Projection screen

    Screen type Fixed frameTechnology Front projection

    Screen fabric soundtransparent mattwhite textile

    Aspect Ratio 16:9

    Viewable Area - Width 243 cm

    Viewable Area - Height 136 cm

    Gain factor 1.1

    Viewing angle - Horizontal 160 °

    Mount type Wall

    Product width 246.5 cm

    Product height 139.9 cm

    Product depth 4.15 cm

    Weight 12.6 kg

    Colour Map Black

    Condition New

    Warranty in Months 24 month

    Product Features

    Highlights

    • Visible, projection area: 243 x 136cm (110")
    • 1.1 Gain acoustically transparent linen fabric, Moire resistant, suitable for 4k
    • Wide viewing angle of over 150° and suitable for all types of projection (ultrashort & short as well as long-throw)
    • Sound permeable up to 18,000 Hz with only 5 dB attenuation! At higher frequencies, the weakening increases
    • Fine fabric structure & smallest acoustic holes: 4K suitable
    • Fire protection class B1 according to DIN 4102-1: 1998 clause 6.1
    • In the box - SoundVision fabric, frame, the velour covers and the necessary installation material for the screen including mounting brackets.
