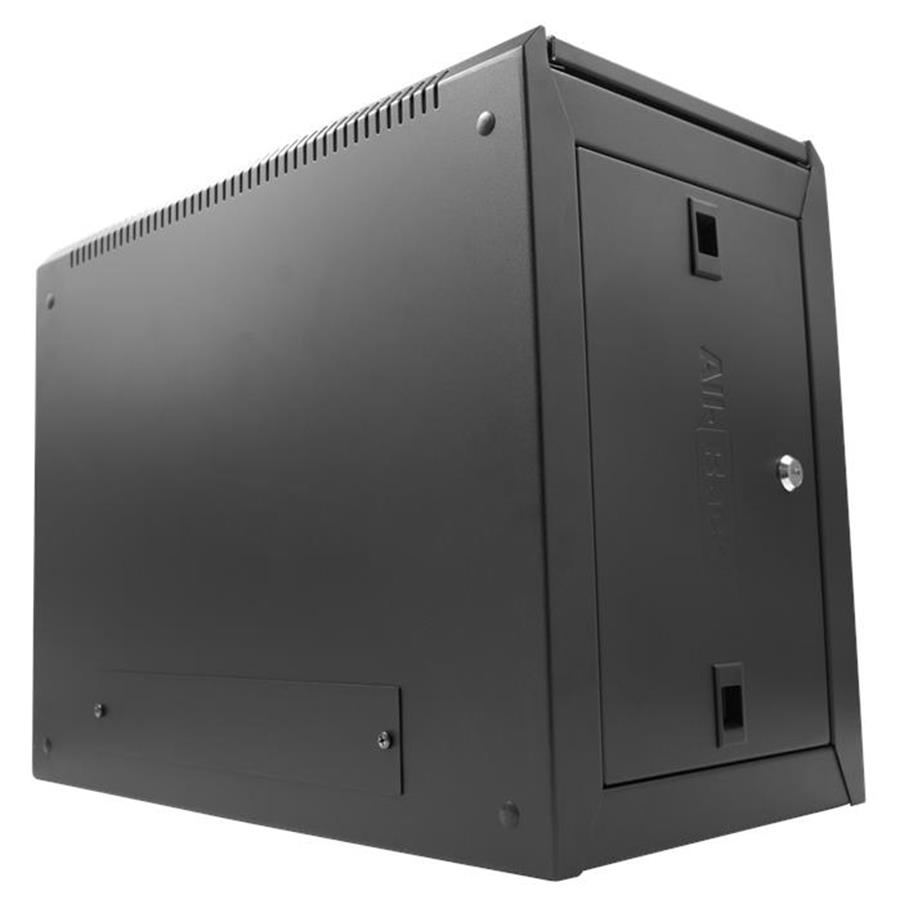

AllRack 6U Wall Mount Cabinet H:310xW:565xD:550
Product Ref: CAB6WB550BLK
MPN: CAB6WB550BLK
All-Rack wall mount data racks and cabinets are designed to be your perfect solution for all your rack mountable equipment.
Available in the following depths: 300mm (only available in 4u & 6u), 450mm, 550mm & 600mm ideal for small network installations where floor space doesn’t allow for a floor standing server cabinet.
The product is perfect for single person installation with easy mounting brackets.
Select Option
Technical Specifications
Loading Capacity: 40KG
Doors: 180 degree opening angle and can be mounted on left & right hand side with simple spring latch
Security: Lockable doors and side panels
Ventilation: Optional fan can be fitted if required
Material:
1.2mm mild steel construction

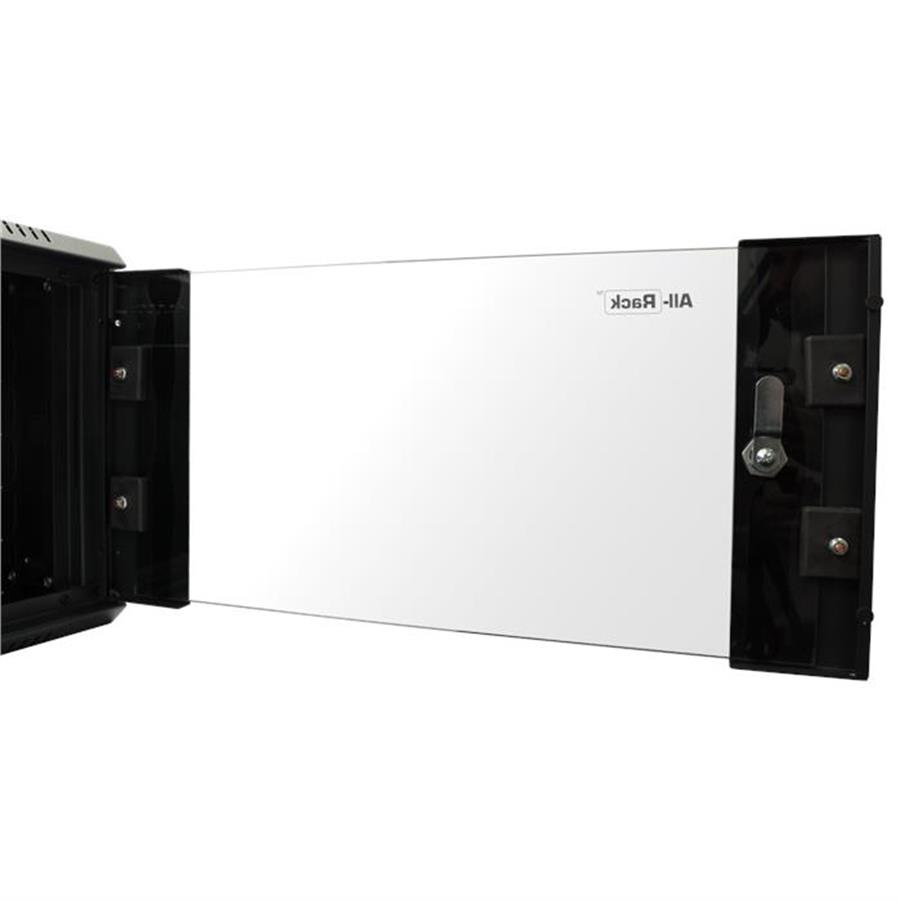

Toughened glass panel in steel framework door
Racks: Supplied with depth adjustable heavy-duty steel mounting profiles to take industry standard 19’’ patch panels, switches and other equipment.
Doors: Lockable, removable glazed front door. Lockable and removable steel side panels
Ventilation: Side panels vented. The roof has a cutout for 2 fan units top be mounted directly
Cable Entry: Cable access points on the lid and base of cabinet.
Colour: RAL9005
Width: 565mm
External Depth: 550mm
Usable Depth: 400mm
Height: 310mm
Weight: 15KG
Product Features
Width: 565mm
External Depth: 550mm
Usable Depth: 400mm
Height: 310mm
Weight: 15KG
