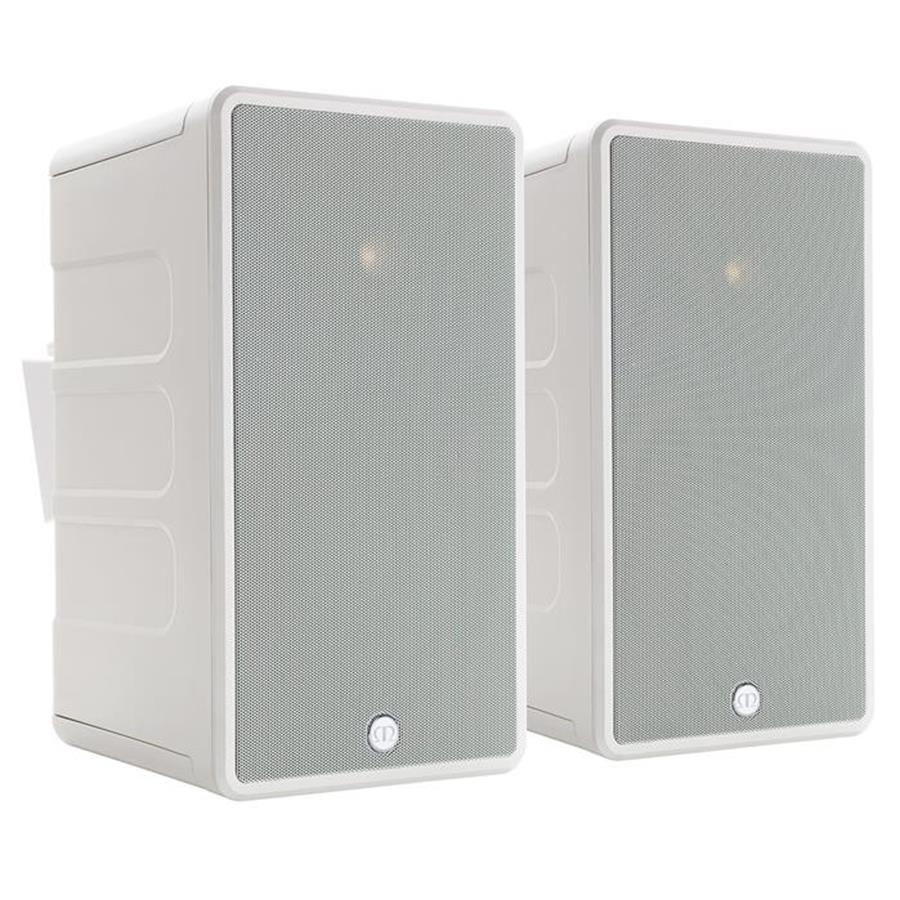

Climate 80 White (Pair)

Technical Specifications

Frequency Response

50 Hz — 30 kHz

Sensitivity (1W@1M)

89.5 dB

Nominal Impedance

8 ohms

Maximum SPL

111.1 dBa

Power Handling (RMS)

120 W

Recommended Amplifier Requirements

20 — 120 W

Drivers

1 x 203 mm (8") C-CAM bass/ mid-range driver
1 x 25 mm (1") C-CAM Gold Dome tweeter

External Dimensions (H x W x D)

405 x 230 x 221 mm (1515/16 x 91/16 x 811/16")

Overall Depth (Including Bracket)

272.5 mm (103/4")

Total Bracket Pivot Angle

87.5 degrees (from central position)

Fixed Angled Block (Portrait)

15 degrees

Connection

Gold plated 'push' type terminals

Environmental Protection Rating

IP55

Colour / Finish

White/Black

Weight (packaged)

6.53 kg (14 lb 6 oz)

Sold As

Pair

Product Features

• Quick and easy installation
• High performance C-CAM tweeter and driver technology
• Robust solid sealed, high density polypropylene enclosure - UV rated.

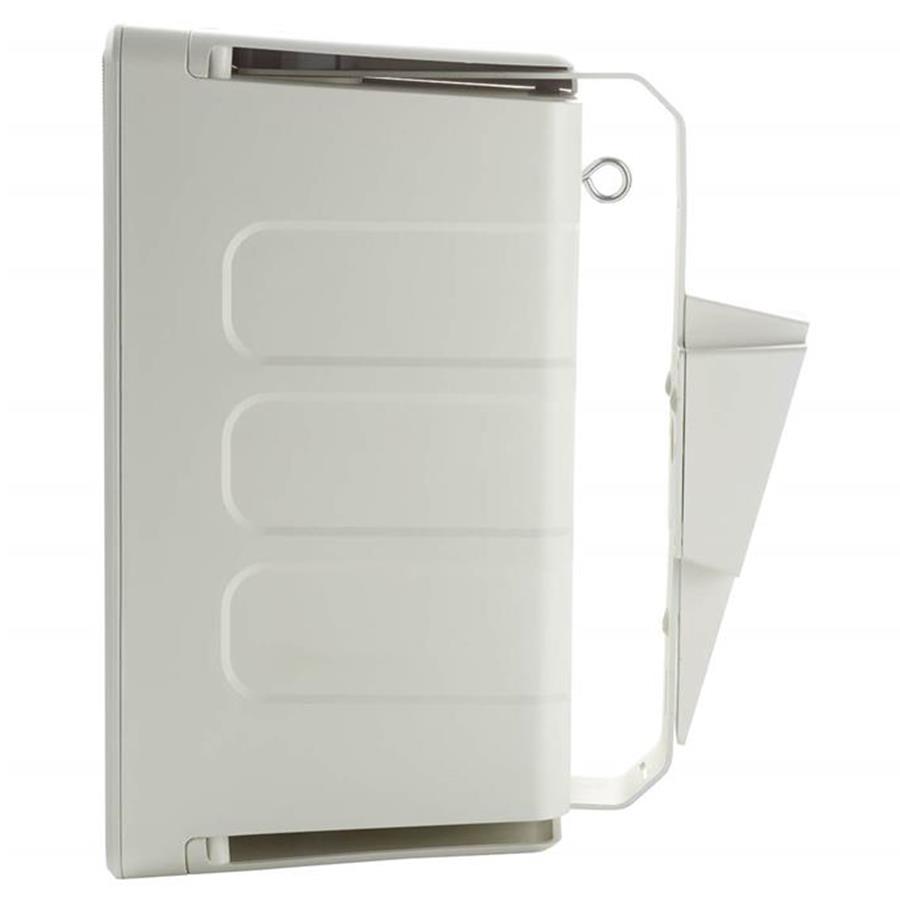

• Full installation flexibility: 175º rotational bracket, (it also features angled sections and screw holes to provide corner fixing.)
• 15º angled wedge supplied for additional bracket versatility

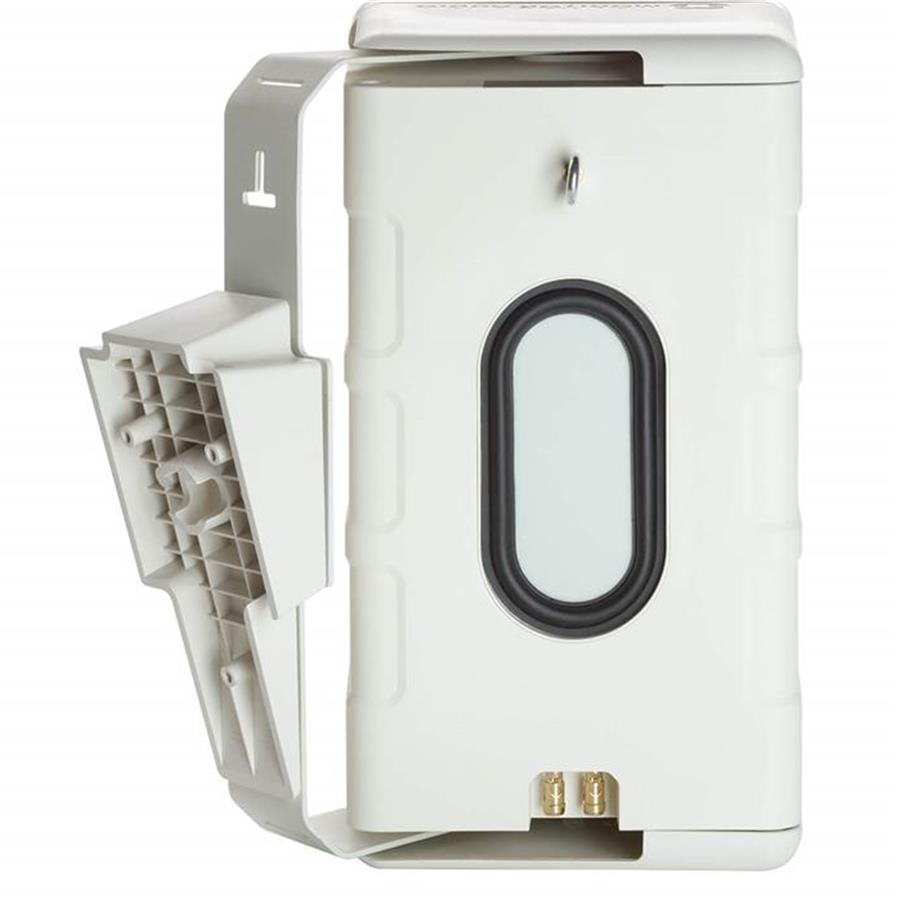

• Anchor point for security chain attachment
• ABR (Auxiliary Bass Radiator) for added low frequency punch
• Aluminium grilles prevent rust
• *Textured white and black finish, paintable to suit décor (paint mask supplied)
• Rotational ‘M' logo to align with portrait or landscape positions.
