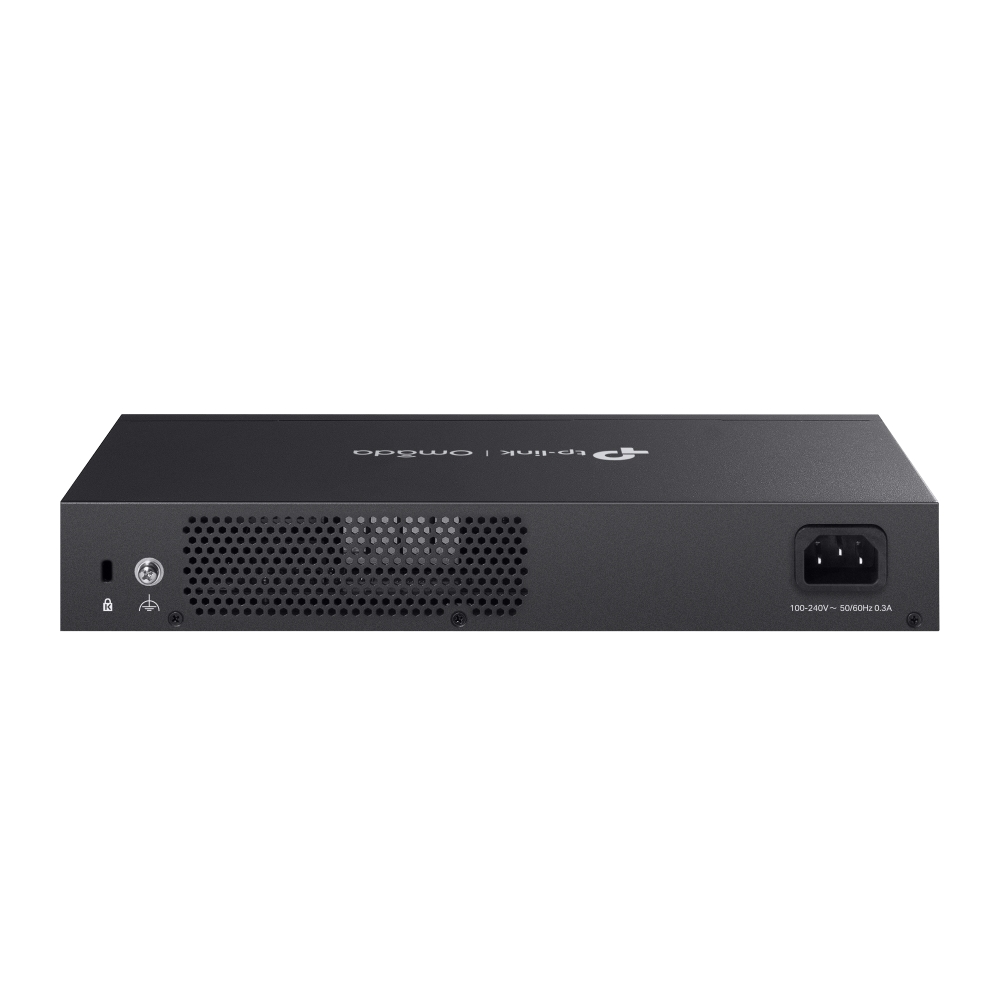

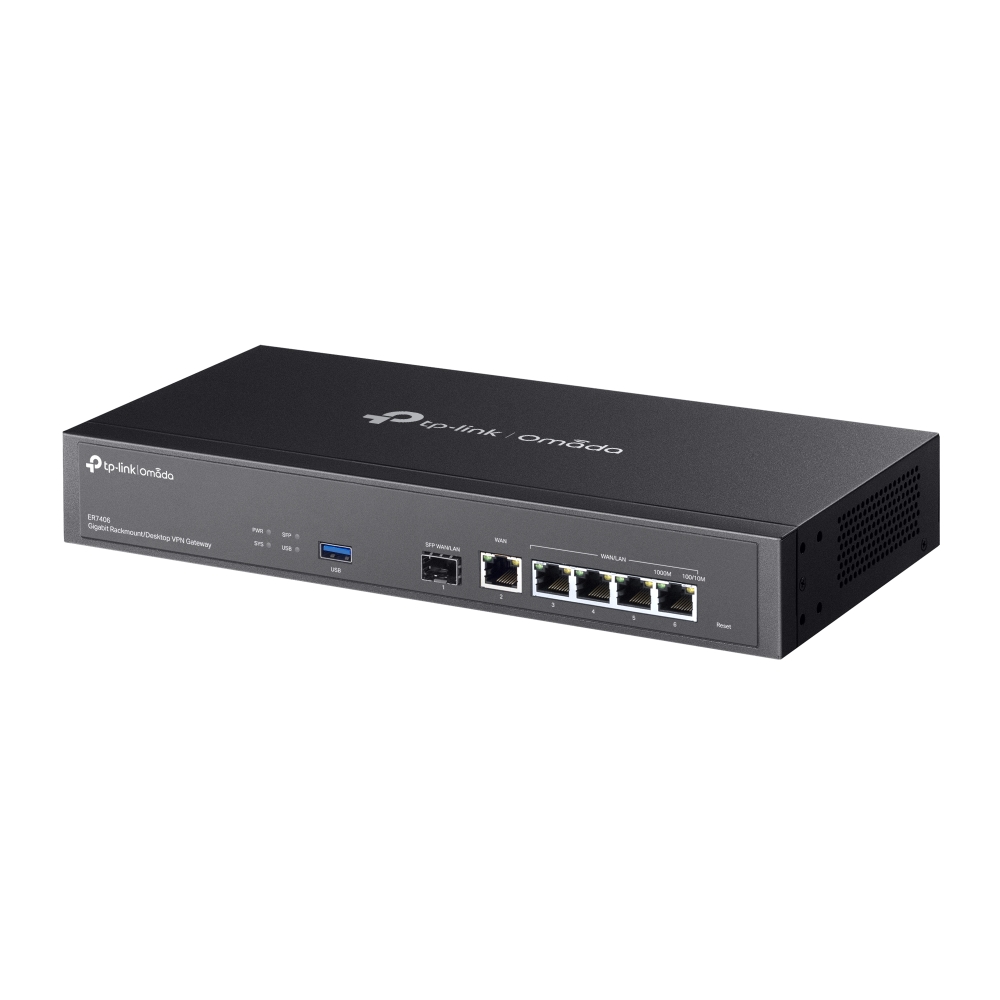

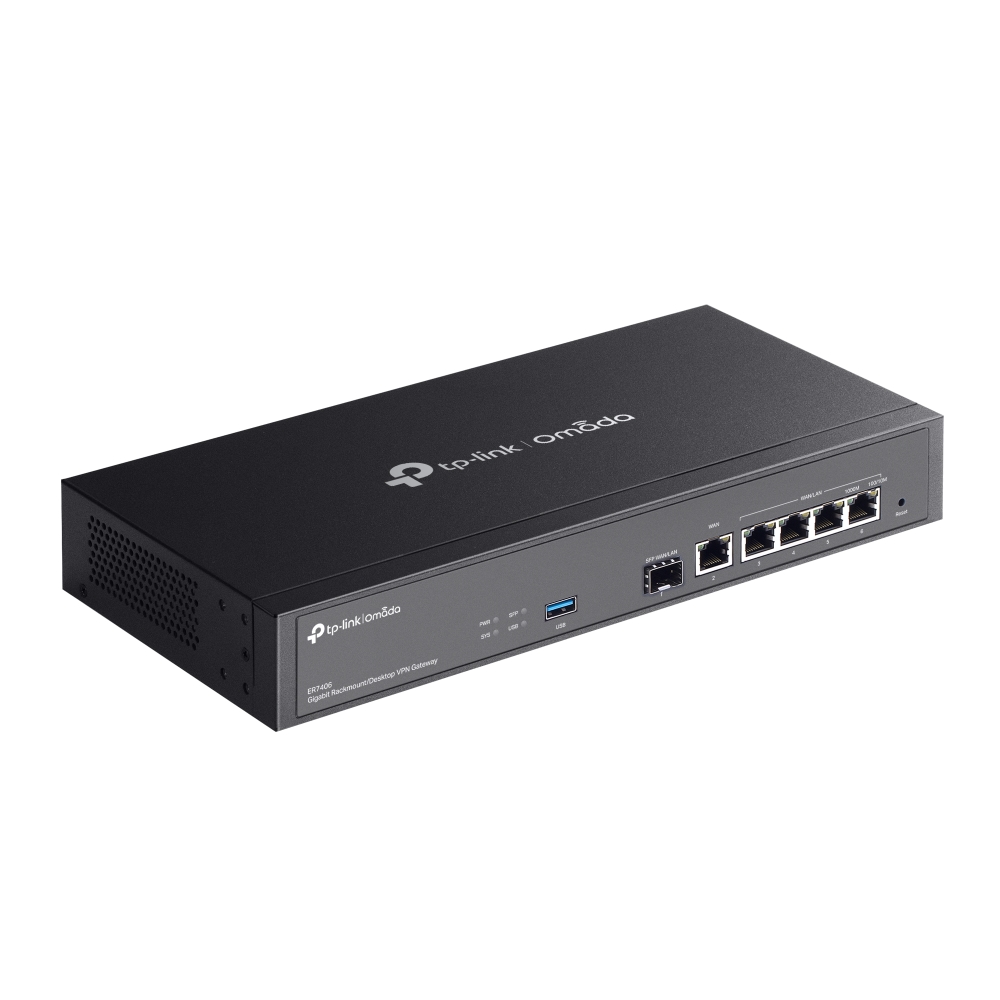

TP Link ER7406 Omada Gigabit VPN Gateway - 1x SFP WAN/LAN / 5x RJ45 (1x WAN / 4x

Technical Specifications

Access Control

• Source/Destination IP Based Access Control

Filtering

• WEB Group Filtering (only in Standalone Mode)
• URL Filtering
• Web Security (only in Standalone Mode)

ARP Inspection

• Sending GARP Packets
• ARP Scanning (only in Standalone Mode)
• IP-MAC Binding

Attack Defence

• TCP/UDP/ICMP Flood Defence
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN

Hardware Features

Standards and Protocols

• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP

Interface

• 1 Gigabit SFP WAN/LAN Port
• 1 Gigabit WAN Port
• 4 Gigabit LAN/WAN Ports
• 1 USB 3.0 Port (supports USB LTE dongle and USB storage)

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100O STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100O STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)

Fan Quantity

• Fanless

Button

• Reset Button

Power Supply

• 100-240VAC, 50/60Hz

Flash

• 128 MB NAND

DRAM

• 512 MB DDR4

LED

• PWR, SYS, SFP, USB, WAN(1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act)

Dimensions ( W x D x H )

• 11.6 × 5.5 × 1.7 in (294 × 140 × 44 mm)

Protection

• 4 kV surge protection

Enclosure

• Steel

Mounting

• Desktop
• Rackmountable

Max Power Consumption

• 7.5 W (with USB 3.0 connected)
• 4.5 W (without USB 3.0 connected)

Performance

IPS Throughput

• TCP: 229 Mbps;
• UDP: 188 Mbps

DPI Throughput

• TCP: 933 Mbps;
• UDP: 927 Mbps

GRE

• Unencrypted: 611.9 Mbps
• Encrypted: 325.0 Mbps

WireGuard VPN

• 341.3 Mbps

Concurrent Session

• 150,000

New Sessions /Second

• 5,300

NAT (Static IP)

• 945.3 Mbps / 940.5 Mbps

NAT(DHCP)

• 939.6 Mbps / 940.9 Mbps

NAT(PPPoE)

• 943.6 Mbps / 940.9 Mbps

NAT (L2TP)

• 880.1 Mbps / 859.0 Mbps

NAT (PPTP)

• 855.0 Mbps / 907.2 Mbps

IPsec VPN Throughput

• ESP-SHA1-AES256: 617.1 Mbps
• ESP-SHA256-AES256: 592.8 Mbps

VLAN

• 802.1Q VLAN

IPTV

• IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

Advanced Functions

Advanced Routing

• Static Routing
• Policy Routing
• RIP (available in Standalone Mode)
• OSPF (available in Standalone Mode)

Bandwidth Control

• IP-based Bandwidth Control

Load Balance

• Intelligent Load Balance
• Application Optimised Routing
• Link Backup (Timing, Failover)
• Online Detection

NAT

• One-to-One NAT
• Multi-Net NAT
• Port Forwarding
• Port Triggering (only in Standalone Mode)
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP

Session Limit

• IP-based Session Limit

VPN

GRE

• Yes (Only in Standalone Mode)

SSL VPN

• 50 Tunnels

IPsec VPN

• 100 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IPsec Failover
• IKE v1/v2
• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)

PPTP VPN

• PPTP VPN Server
• PPTP VPN Client (up to 10 VPN servers)
• 50 Tunnels
• PPTP with MPPE Encryption

L2TP VPN

• L2TP VPN Server
• L2TP VPN Client (up to 10 VPN servers)
• 50 Tunnels
• L2TP over IPSec

OpenVPN

• OpenVPN Server
• OpenVPN Client (up to 5 VPN servers)
• 55 OpenVPN Tunnels
• "Certificate + Account" Mode
• Full Mode

WireGuard VPN

• 20 Tunnels

Authentication

Web Authentication

• No Authentication
• Simple Password (requires the use of the Omada SDN Controller)
• Hotspot
  • Local User
  • Voucher (requires the use of the Omada SDN Controller)
  • SMS
  • Radius (requires the use of the Omada SDN Controller)
• External Radius Server
• External Portal Server (requires the use of the Omada SDN Controller)
• LDAP (only in Standalone Mode)

Management

Omada App

• Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralised Management

• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller

Cloud Access

• Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Service

• Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customisation)

Maintenance

• Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Diagnos
