TP Link ER8411 Omada VPN Router 10Gb Ports - 2x SFP+ / 10x WAN (8x RJ45 / 2x Fiber)
Product Ref: ER8411
MPN: 76028
- Dedicated Quad-core Cortex-A72 @2.2GHz CPU for outstanding performance
- 4GB DDR4 high-speed memory for high concurrent connections
- Equipped with one (1) 10G SFP+ WAN port, one (1) 10G SFP+ WAN/LAN port, one (1) Gigabit SFP WAN/LAN port, and eight (8) Gigabit RJ45 WAN/LAN ports.
- Two (2) USB 3.0 ports available 4G/3G Modem connection for LTE WAN backup
- Supports multiple VPN protocols including SSL VPN/ OpenVPN/ IPSec/ PPTP/ L2TP/ L2TP over IPSec, helping users to establish VPN connections more flexibly, ideal for use across multiple branches and for WFH.
- Powerful Firewall, DoS defence, IP/MAC/URL filtering, and IP-MAC Binding, and One-Click ALG Activation provide world-class security.
- Supports up to 2,300,000 concurrent connections
- Abundant features including load balance, bandwidth control and access control
- Professional 4 kV lightning protection keeps your investments as safe as possible
- Zero-Touch Provisioning (ZTP), Centralised Cloud Management, and Intelligent Monitoring.
- Cloud access and Omada app for ultra convenience and easy management.
Technical Specifications
Hardware Features

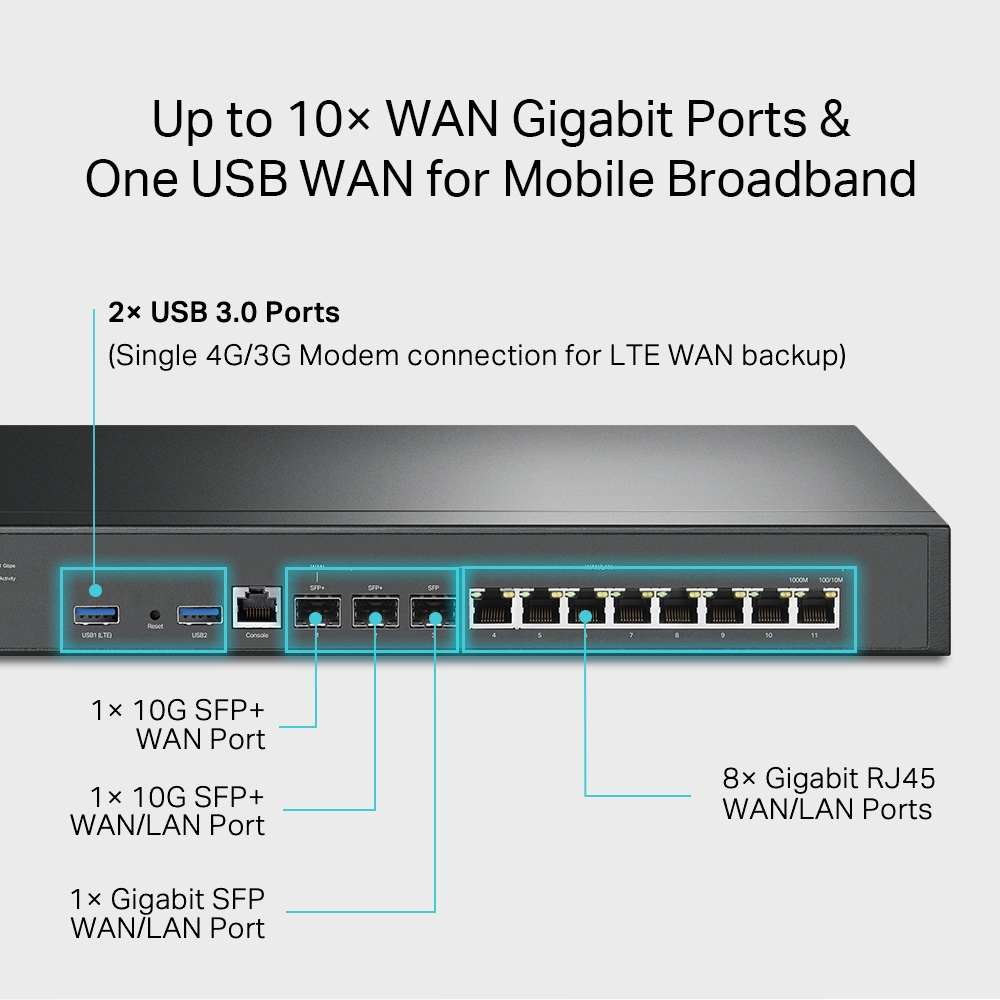

Interface
- 2× 10GE SFP+ Ports (1 WAN, 1 WAN/LAN)
- 1× 1GE SFP WAN/LAN Ports
- 8× 1GE RJ45 WAN/LAN Ports
- 1× RJ45 Console Ports
- 2× USB Ports (Connecting 4G/3G Modem as WAN Backup)
Button
- Reset Button
Power Supply
- Redundant Dual Power Supplies (100–240 VAC, 50/60 Hz)
Flash
- 4MB SPI NOR + 256 MB NAND
DRAM
- 4 GB DDR4
LED
- PWR, SYS, WAN, LAN, USB, FAN
Dimensions ( W x D x H )
- 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)
Max Power Consumption
- 26.36 W (with USB 3.0 connected)
- 19.12 W (without USB 3.0 connected)
Performance
Concurrent Session
- 2,300,000
New Sessions /Second
- 20,000
NAT (Static IP)
- Upload: 9445.82 Mbps
- Download: 9449.26 Mbps
NAT(DHCP)
- Upload: 9426.83 Mbps
- Download: 9426.20 Mbps
NAT(PPPoE)
- Upload: 9413.96 Mbps
- Download: 9102.01 Mbps
NAT (L2TP)
- Upload: 4230.62 Mbps
- Download: 4169.53 Mbps
NAT (PPTP)
- Upload: 3933.86 Mbps
- Download: 3821.97 Mbps
64 Byte Packet Forwarding Rate
- Upload: 1080 Mbps
- Download: 1030 Mbps
IPsec VPN Throughput
- SHA1-AES256: 2140.45 Mbps
- SHA2-AES256: 2080.20 Mbps
OpenVPN
- 1665.64 Mbps
L2TP VPN Throughput
- Unencrypted: 5013.50 Mbps
- Encrypted: 2274.74 Mbps
SSL VPN Throughput
- 1511.10 Mbps
Basic Functions
WAN Connection Type
- Static/Dynamic IP
- PPPoE
- PPTP
- L2TP
- 6to4 Tunnel
- Pass-Through
- Mobile Broadband: 4G/3G modem for backup via USB port
MAC Clone
- Modify WAN/LAN MAC Address
DHCP
- DHCP Server/Client
- DHCP Address Reservation
- Multi-net DHCP
- Multi-IP Interfaces
IPv6
- WAN Connection
VLAN
- 802.1Q VLAN
IPTV
- IGMP v2/v3 Proxy
Advanced Functions
ACL
- IP/Port/Protocol/Domain Name Filtering
Advanced Routing
- Static Routing
- Policy Routing
Bandwidth Control
- IP/Port-based Bandwidth Control
- Guarantee & Limited Bandwidth
Load Balance
- Intelligent Load Balance<
Session Limit
- IP-based Session Limit
VPN
SSL VPN
- SSL VPN Server
- SSL VPN Client
- 500 OpenVPN Tunnels
IPsec VPN
- 300 IPSec VPN Tunnels
- LAN-to-LAN, Client-to-LAN
- Main, Aggressive Negotiation Mode
- DES, 3DES, SHA1, SHA2, AES128, AES192, AES256 Encryption Algorithm
- IKE v1/v2
- MD5, SHA1 Authentication Algorithm
- NAT Traversal (NAT-T)
- Dead Peer Detection (DPD)
- Perfect Forward Secrecy (PFS)
PPTP VPN
- PPTP VPN Server
- PPTP VPN Client (32)
- 300 Tunnels (Shared with L2TP)
- PPTP with MPPE Encryption
L2TP VPN
- L2TP VPN Server
- L2TP VPN Client (32)
- 300 Tunnels (Shared with PPTP)
- L2TP over IPSec
OpenVPN
- OpenVPN Server
- OpenVPN Client (10)
- 110 OpenVPN Tunnels
Security
Filtering
- WEB Group Filtering
- URL Filtering
- Web Security
ARP Inspection
- Sending GARP Packets
- ARP Scanning
- IP-MAC Binding
Attack Defence
- TCP/UDP/ICMP Flood Defence
- Block TCP Scan (Stealth FIN/Xmas/Null)
- Block Ping from WAN
Access Control
- Source/Destination IP Based Access Control
Authentication
Web Authentication
- No Authentication
- Simple Password
- Hotspot(Local User / Voucher / SMS / Radius
- External Radius Sever
- External Portal Sever
- Facebook Check-In
- Instagram Follow
Management
Omada App
- Yes. Requiring the use of OC300 (sold separately), OC200 (sold separately), Omada Cloud-Based Controller, or Omada Software Controller.
Centralised Management
- Omada Hardware Controller (OC300, sold separately)
- Omada Hardware Controller (OC200, sold separately)
- Omada Software Controller
- Omada Cloud-Based Controller
Cloud Access
- Yes. Requiring the use of OC300 (sold separately), OC200 (sold separately), Omada Cloud-Based Controller, or Omada Software Controller.
Service
- Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
Maintenance
- Web Management Interface
- Remote Management
- Export & Import Configuration
- SNMP v1/v2c/v3
- Diagnostics (Ping & Traceroute)
- NTP Synchronise
- Syslog Support
Zero-Touch Provisioning
- Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features
- Automatic Device Discovery
- Intelligent Network Monitoring
- Abnormal Event Warnings
- Unified Configuration
- Reboot Schedule
- Captive Portal Configuration
Others
Certification
- CE, FCC, RoHS
System Requirements
