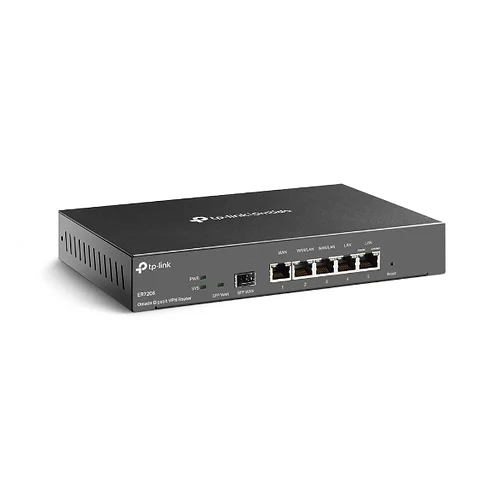

TP Link ER7206 Omada Gigabit VPN Gateway - 1x SFP / 5x RJ45 (1x WAN / 4x WAN/LAN)
Product Ref: ER7206
The TP-Link TL-ER7206 SafeStream Quad-WAN Broadband VPN Router features up to four (4) WAN ports that allow multiple Ethernet connections to the internet at the same time. This gives you the ability to not only enjoy more internet sources from different ISPs but to also reduce network bottlenecks, and with fail-over and automatic load balancing, no manual configuration should ever be required. The TP-Link TL-ER7206 provides all the normal settings of a broadband router, and features advanced functions such as Bandwidth Control, Port VLAN, UPnP, VPN Pass-through, Firewall and more.
Technical Specifications
Standards and Protocols
- IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q, TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP
Interface
- 1 x Gigabit SFP Port
- 1 x Gigabit WAN port
- 2 x Gigabit LAN/WAN ports
- 2 x Gigabit LAN port
Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m)
- EIA/TIA-568 100 ohms STP (Max 100 m)
- 100BASE-TX: UTP category 5, 5e cable (Max 100 m)
- EIA/TIA-568 100 ohms STP (Max 100 m)
- 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Button
- Reset button
Power Supply
- 100–240 VAC, 50/60 Hz
Flash
- 4MB SPI + 128 MB NAND
DRAM
- 512 MB
LED
- PWR, SYS, SFP WAN, WAN (Speed, Link/Act), LAN (Speed, Link/Act)
Surge Protection
- 4 kV surge protection
Dimensions ( W x D x H )
- 226 × 131 × 35 mm (8.9 × 5.2 × 1.4 in)
SDN Support
Hardware Controller (OC200/OC300)
- Automatic Device Discovery
- Intelligent Network Monitoring
Software Controller
- Abnormal Event Warnings
- Unified Configuration
- Reboot Schedule
Cloud-Based Controller
- Captive Portal Configuration
- ZTP (Zero-Touch Provisioning)
Performance
Concurrent Session
- 150,000
New Sessions /Second
- 5,500
Static IP NAT Throughput (Upload / Download)
- 940.3 Mbps / 940.2 Mbps
DHCP NAT Throughput (Upload / Download)
- 940.3 Mbps / 940.4 Mbps
PPPoE NAT Throughput (Upload / Download)
- 939.7 Mbps / 937.9 Mbps
L2TP NAT Throughput (Upload / Download)
- 918.0 Mbps / 917.9 Mbps
PPTP NAT Throughput (Upload / Download)
- 918.9 Mbps / 914.7 Mbps
66 Byte Packet forwarding rate (Upload / Download)
- 486,918 pps / 488,372 pps
1,518 Byte Packet forwarding rate (Upload / Download)
- 81,274 pps / 81,274 pps
IPSec VPN Throughput (AES256)
- 291.6 Mbps
L2TP VPN Throughput
- Unencrypted: 1360.3 Mbps
- Encrypted: 202.3 Mbps
PPTP VPN Throughput
- Unencrypted: 1379.3 Mbps
- Encrypted: 115.6 Mbps
Basic Functions
WAN Connection Type
- Static IP
- Dynamic IP
- PPPoE
- PPTP
- L2TP
DHCP
- DHCP Server
- DHCP Address Reservation
- Multi-IP Interfaces
- Multi-Net DHCP
MAC Clone<
Product Features

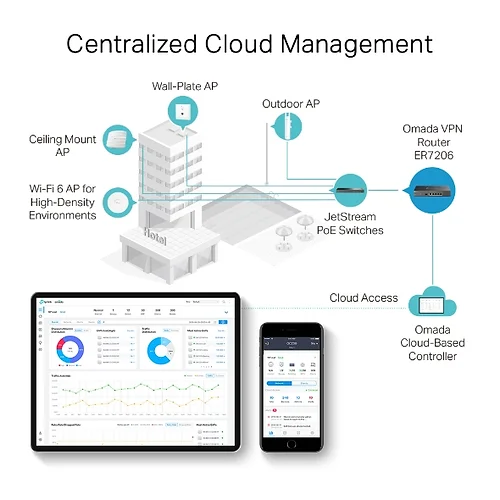

- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Gigabit Ports: 1 gigabit SFP and 5 gigabit RJ45 ports provide high-speed wired connectivity.
- Up to 4 WAN Ports: 1 gigabit SFP WAN port, 1 gigabit RJ45 WAN port, 2 gigabit WAN/LAN ports optimize bandwidth usage.

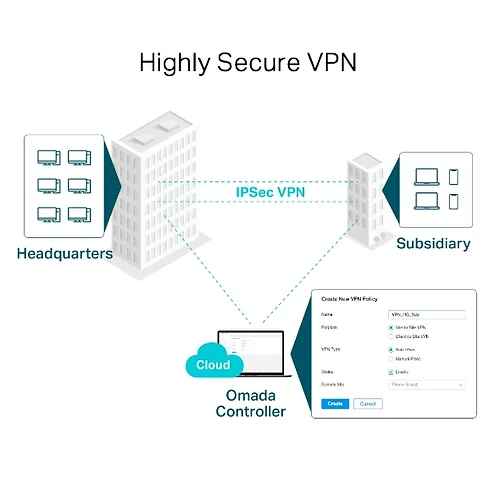

- Highly Secure VPN: Supports up to 100× LAN-to-LAN IPsec, 50× OpenVPN*, 50× L2TP, and 50× PPTP VPN connections.
- Abundant Security Features: Advanced firewall policies, DoS defense,IP/MAC/URL filtering, and more security functions protect your network and data.
