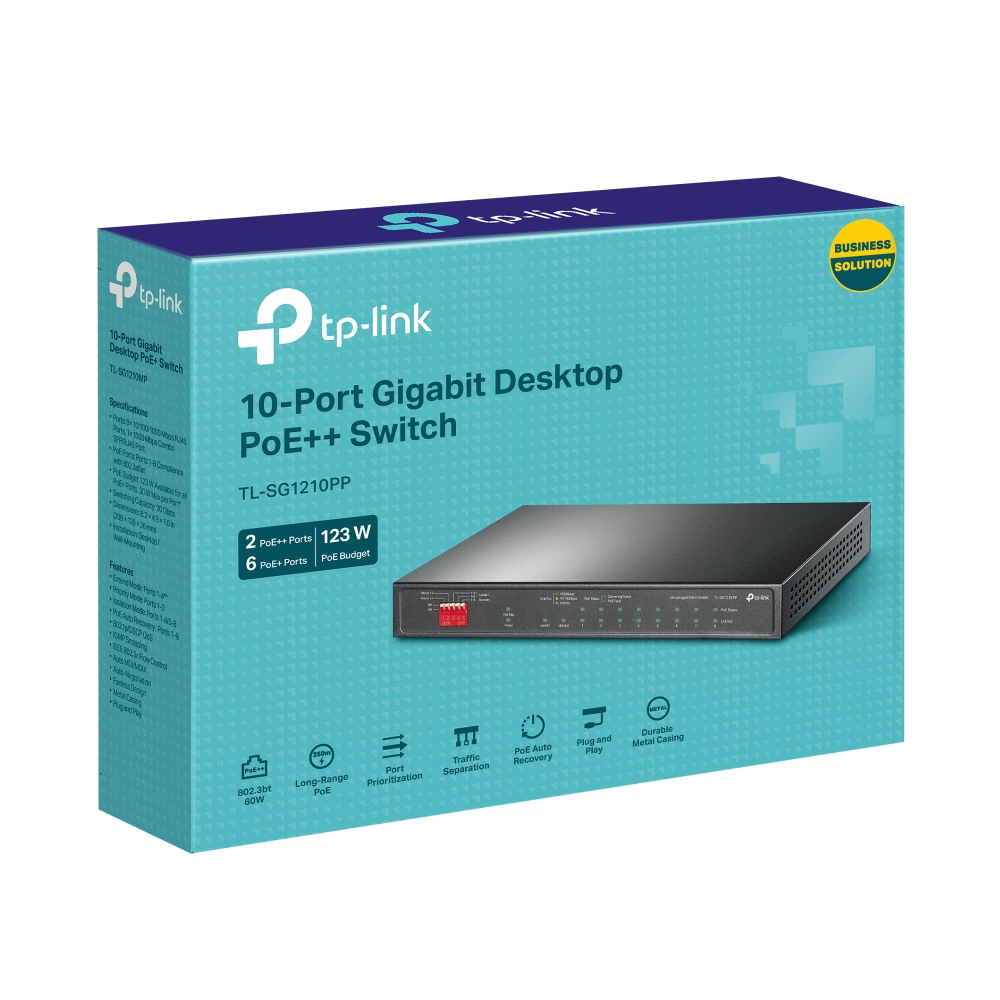

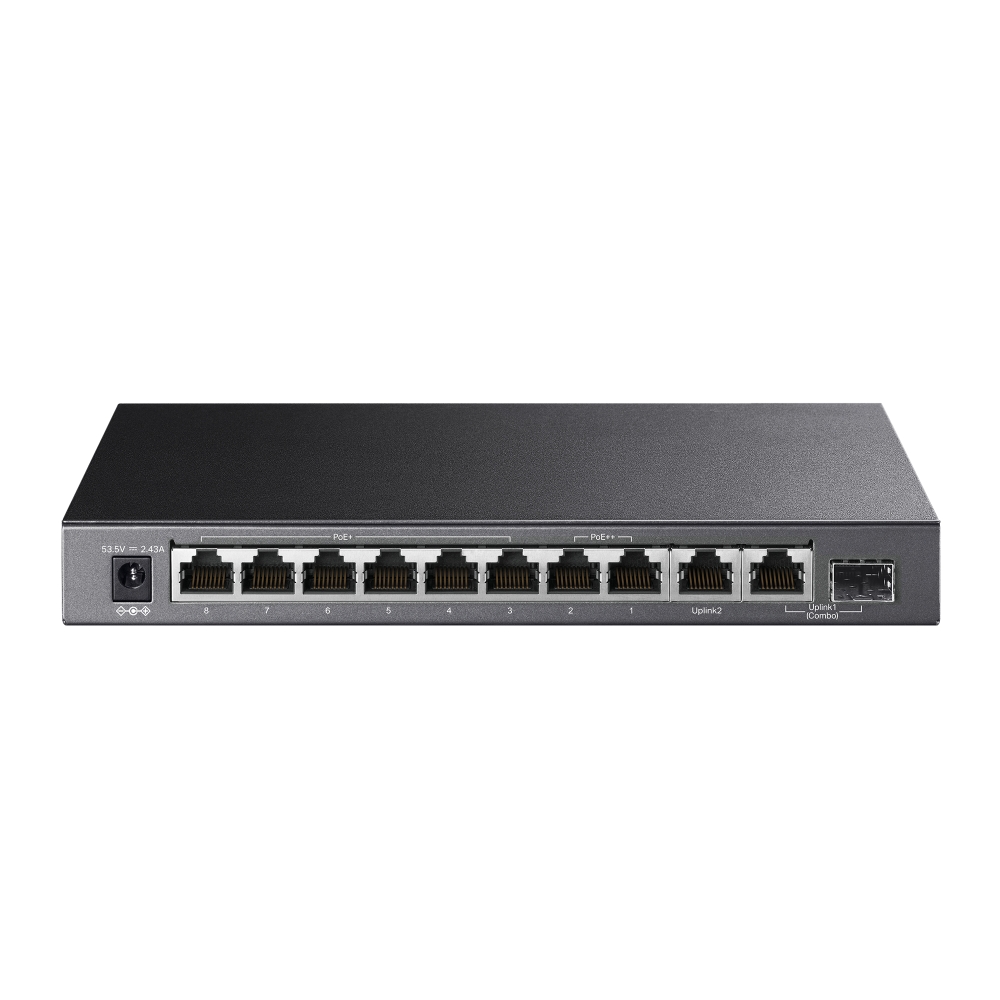

TP Link SG1210PP 10-Port Gigabit Desktop Switch with 6-Port PoE+ & 2-Port PoE++123W
Product Ref: TL-SG1210PP
MPN: 80176
- Nine (9) 10/100/1000Mbps RJ45 Ports and one (1) 1000Mbps Combo SFP/RJ45 Port.
- Two (2) PoE++ ports and six (6) PoE+ ports for transferring data and power over a single cable.
- Works with IEEE 802.3af/at/bt compliant PDs.
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic.
- Supports PoE Power up to 30W for each PoE+ port and 60W for PoE++ port.
- Provides a PoE budget of up to 123W across all PoE ports.
- Plug and Play, no configuration and installation required.
- Up to 250m data and power transmitting range under Extend Mode.
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PDs.
- Isolation Mode allows one-click client traffic separation for higher security and performance.
- Priority Mode guarantees the quality of sensitive applications like video monitoring in critical business areas by prioritising the data of ports 1-2.
Technical Specifications
Hardware Features
Interface
- 9 x 10/100/1000Mbps RJ45 Ports
- 1 x 1000Mbps Combo SFP/RJ45 Port
- AUTO Negotiation
- AUTO MDI/MDIX
Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100 ohms STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100 ohms STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100 ohms STP (maximum 100m)
Fan Quantity
- Fanless
External Power Supply
- External Power Adapter (Output: 53.5 VDC / 2.43 A)
Packet Forwarding Rate
- 14.88 Mpps
PoE Ports (RJ45)
- Port 1-2 compliance with 802.3af/at/bt; Ports 3-8 compliance with 802.3af/at
- Power Supply: 123 W
Mac Address Table
- 4K
Switching Capacity
- 20 Gbps
Dimensions (W x D x H)
- 209 x 126 x 26 mm (8.2 x 5.0 x 1.0 in.)
Max Power Consumption
- 8.7 W (220/50 Hz. no PD connected)
- 144.1 W (220/50 Hz. with 123 W PD connected)
Max Heat Dissipation
- 29.67 BTU/h (220/50 Hz. no PD connected)
- 491.38 BTU/h (220/50 Hz. with 123 W PD connected)
Software Features
Advanced Features
- Compatible With IEEE 802.3af/at/bt Compliant PDs
- Mac Address Auto-Learning And Auto-Aging
- IEEE 802.3x Flow Control
- 802.1p/DSCP QoS
- IGMP Snooping
- Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)
- PoE Auto Recovery (Ports 1-8)
- Isolation Mode (Ports 1-4/5-8)
- Priority Mode (Ports 1-2)
Transfer Method
- Store-And-Forward
Other Specifications
Certification
- FCC, CE, RoHS
Environment
- Operating Temperature: 0°C – 40°C (32°F – 104°F)
- Storage Temperature: -40°C – 70°C (-40°F – 158°F)
- Operating Humidity: 10% – 90% RH non-condensing
- Storage Humidity: 5% – 90% RH non-condensing
Package Contents
- 1 x TL-SG1210PP
- 1 x Power Adapter
- 1 x Installation Guide
