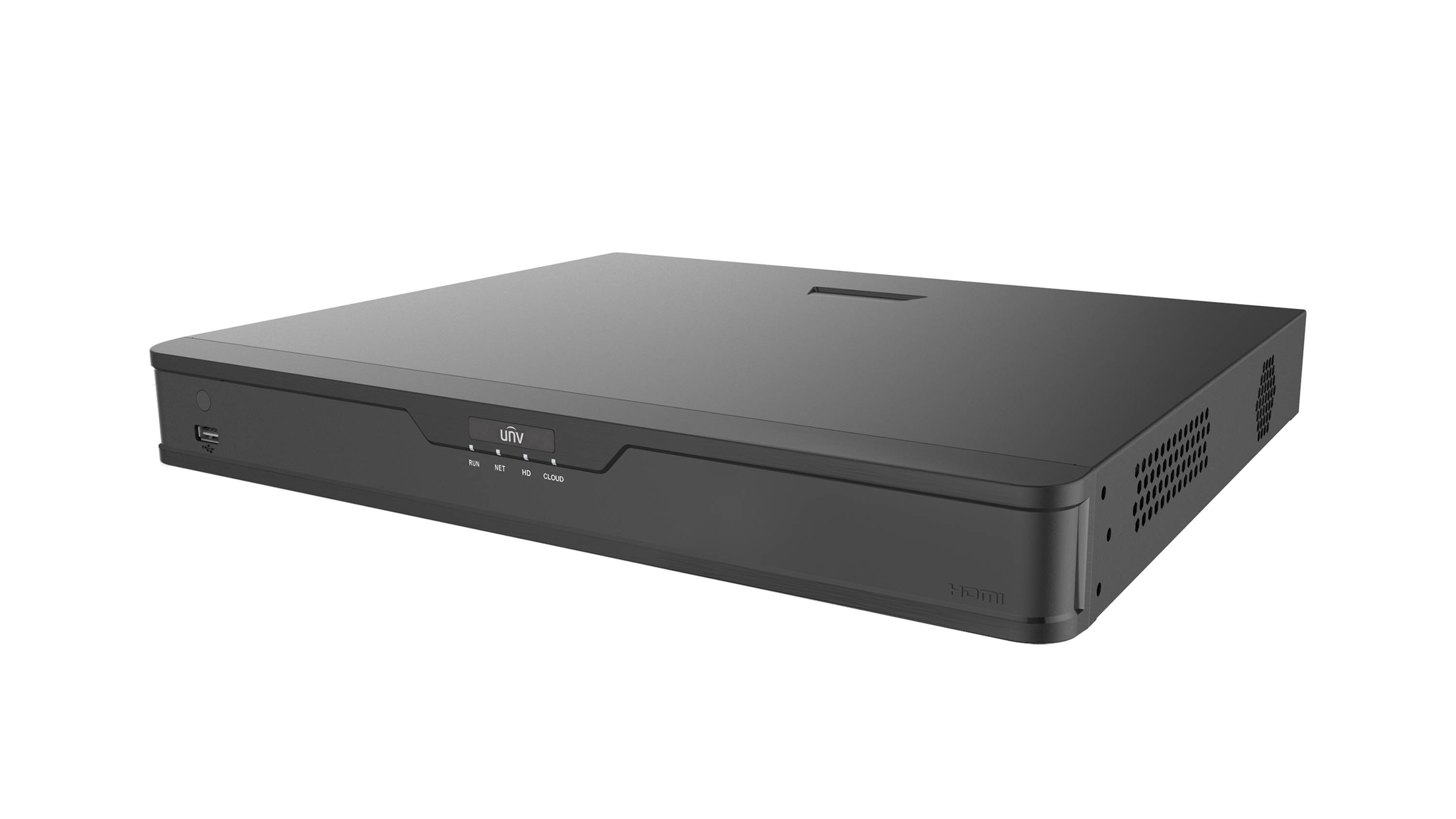

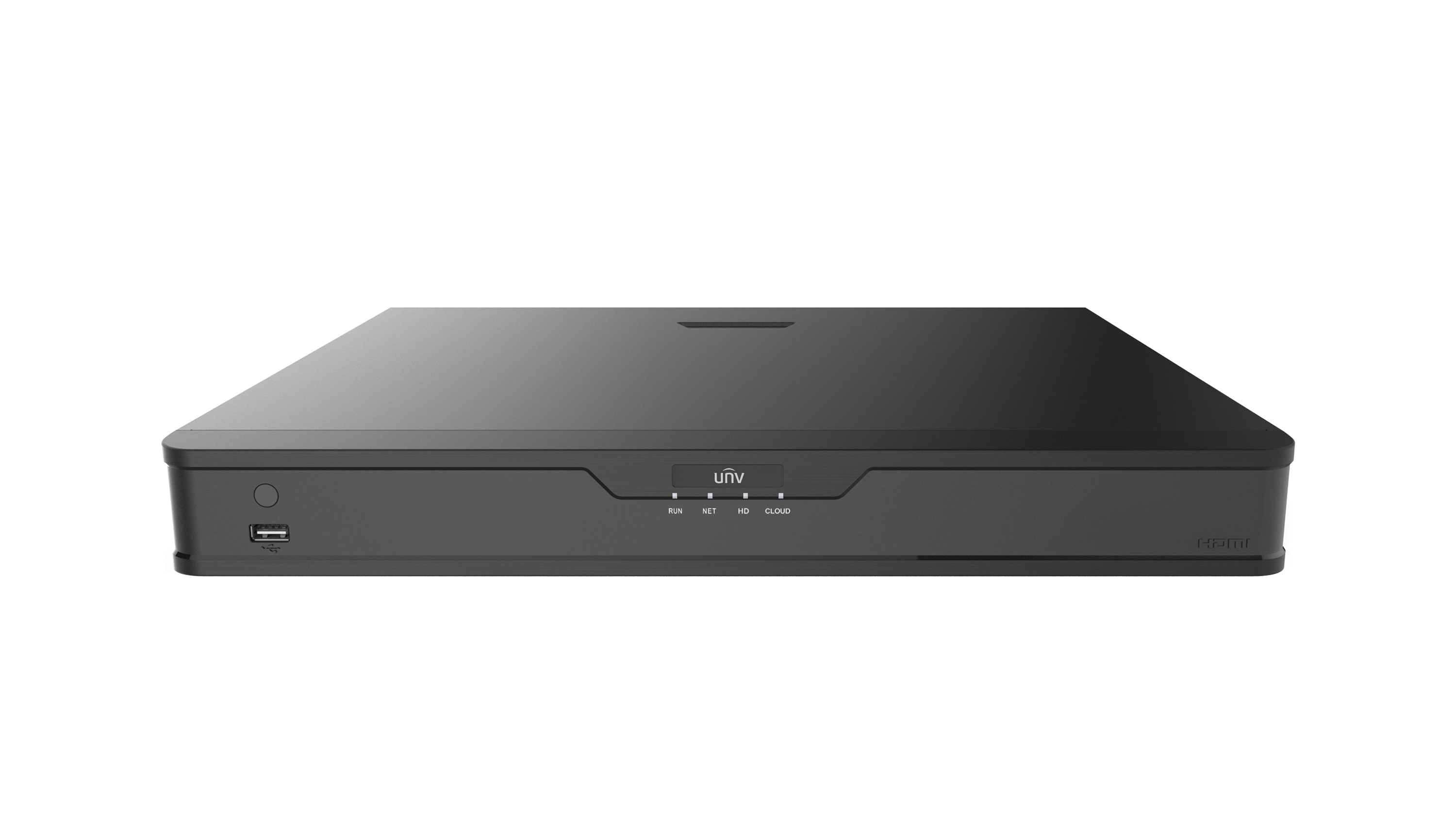

UNV Hybrid DVR 16 Channel (2 HDD) XVR302-16Q3
Product Ref: UNV-1001172
MPN: UV-XVR302-16Q3
Part of the UNV professional range, this Hybrid DVR has HD recording and playback of all channels. It includes a user-friendly mouse-driven interface with full remote network and mobile phone access. The NVR can auto-detect ONVIF-compatible IP cameras; it also supports AHD, TVI, CVI, and Analogue cameras.
- 24 Channel Video & Audio (up to 16 BNC and up to 8 IP cameras)
- Hybrid DVR (5-in-1)
- Supports up to 8MP Cameras
- Supports Audio-over-Coax Cameras (TVI only)
- Bandwidth IN: 80Mbps, OUT: 160Mbps
- HDMI, VGA & BNC Spot Output
- ONVIF Compliance (Profiles S, G, C, Q, A, T)
- Supports H.264, or H.265
- Mac Compatible
- Compatible with Sentinel Remote Monitoring
Technical Specifications
Video/Audio Input
Video Input: 24ch H.264/H.265Incoming Bandwidth: 80MbpsOutgoing Bandwidth: 160MbpsSupported Technologies: AHD, TVI, CVI, Analogue, IP
Video/Audio Output
Live View/ Playback/ Recording Resolution: 8MP Lite / 5MP Lite / 4MP Lite / 1080P / 720P / D1Frame Rate: 8MP Lite@8fps / 5MP Lite@12fps / 4MP Lite@15fps / 1080P@15fps / 720P@30fpsPlayback Capacity: 16ch 1080PHDMI Output: 3840x2160, 1920x1080, 1280x720, 1024x768VGA Output: 1920x1080, 1280x720, 1024x768Audio Output: 1ch, Line out
Hard Disk
Drive quantity: Up to 2 SATA drivesDrive capacity: Up to 8TB each
Network
Network Interface: 1 RJ45 10M/100/1000MProtocol: RTP/RTCP, TCP/UDP ,HTTP, DHCP, DNS, NTP, P2P, UPnP, PPPoEPOE Interface: N/APOE Max Power: N/A
Storage and Backup
Recording Mode: Manual, Continuous, Schedule, Motion, Pre/PostPlayback: Search by Time, Calendar, EventsBackup Devices: Via USB Memory Stick, HDD or over the networkLive View: 1, 4, 6, 8, 9, 16 or 25 screens, Digital Zoom
General
Power Supply: 12V DCPower Consumption: Max 12W (without HDD, USB)Operating Temperature: -10°C ~ +55°COperating Humidity: 0% - 90% RHProduct Dimensions: 380mm(W) x 326mm(D) x 53mm(H)
Application
Supported OS: Windows 7+, MacOS X 10.11+Remote Software: Internet Explorer 9+, EZStation VMSSupported Devices: iOS, AndroidMobile App: EZViewNotifications: Email or Push
Interface
Video Outputs: HDMI (x1), VGA (x1), BNC (x1)USB: USB 3.0 (x1), USB 2.0 (x1)Audio I/O: Microphone in (x1), Audio line out (x1)Alarm I/O: Alarm input (x4), Alarm output (x1)PTZ Control: Onvif / RS-485Control: Mouse control, IR remote
