TP Link EAP683-UR Omada 5952Mbps WiFi 6 Wireless Ceiling Mount Access Point
Product Ref: EAP683-UR
- Up to 5952 Mbps WiFi 6 Speeds: 1148 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz.
- Ultra-range wireless coverage by 4×4 MIMO dual-band internal antennas with high transmission power.
- Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc.
- Integrates with the Omada SDN platform for centralised management.
- Advanced Features: Omada Mesh, Seamless Roaming, and more.
- PoE+ Powered: Supports both 802.3at PoE+ and DC (power adapter not included).
Technical Specifications
Hardware Features

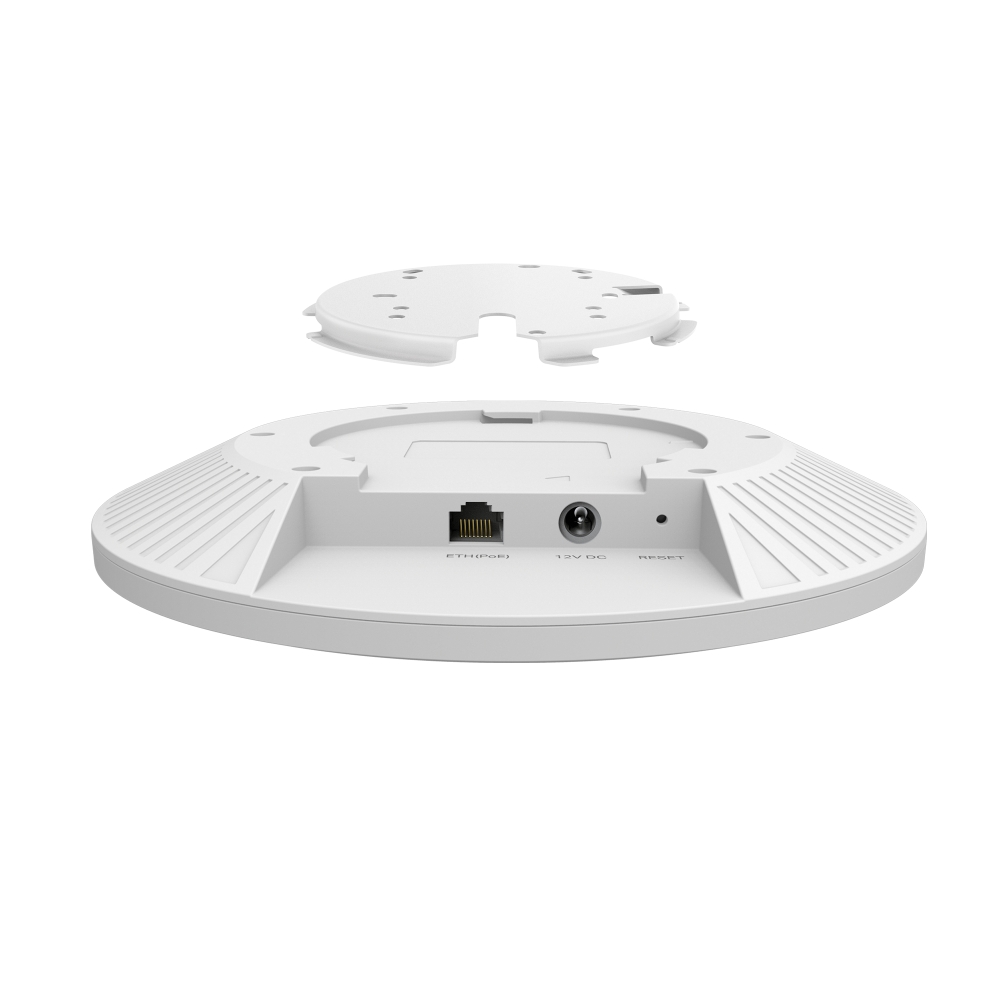

Interface
- 1 x 2.5 Gigabit PoE+ Port
Button
- Reset
Power Supply
- 802.3at PoE
- 12 V / 2 A DC
- Note: Power adapter is not included.
Power Consumption
- EU: 20.43W
- US: 23.69W

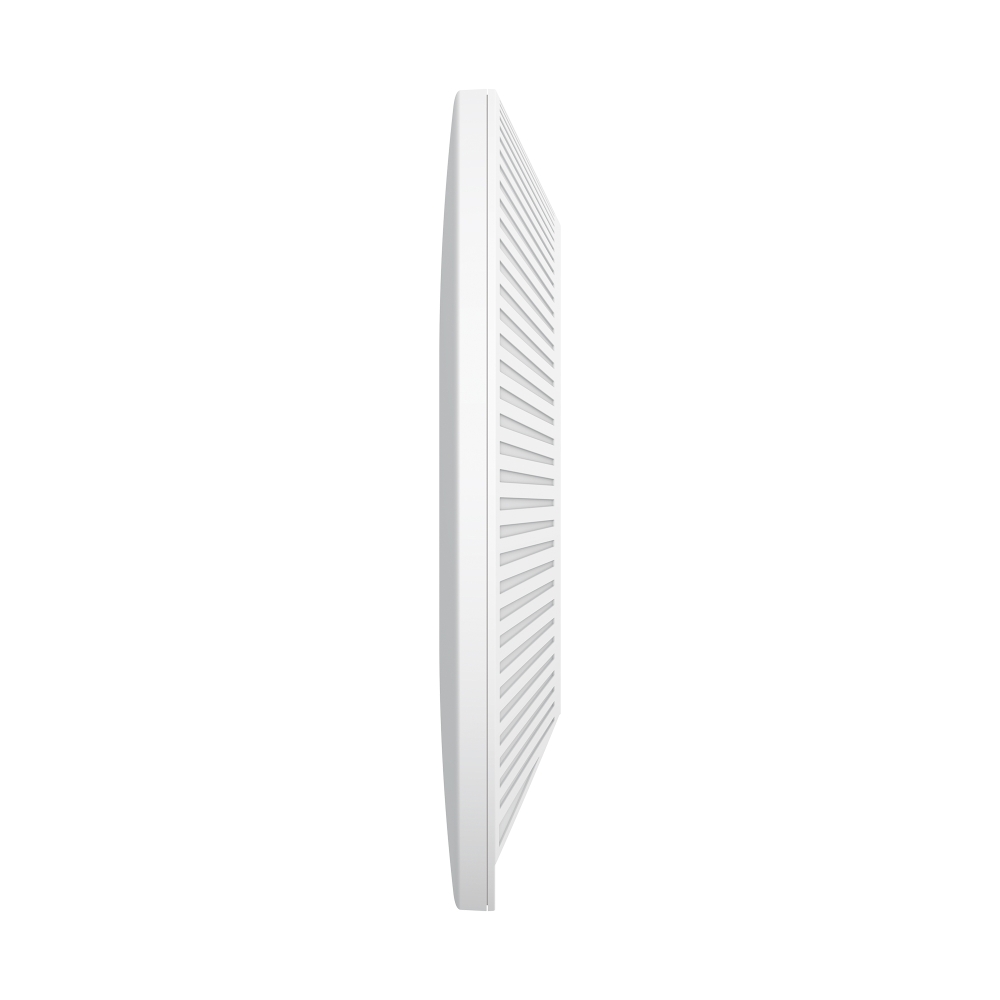

Dimensions (W x D x H)
- 220 x 220 x 32.5 mm (8.7 x 8.7 x 1.3 in.)
Antenna Type
- Internal Omni
- 2.4 GHz: 4 x 4 dBi
- 5 GHz: 4 x 5 dBi
Bluetooth
- V5.2

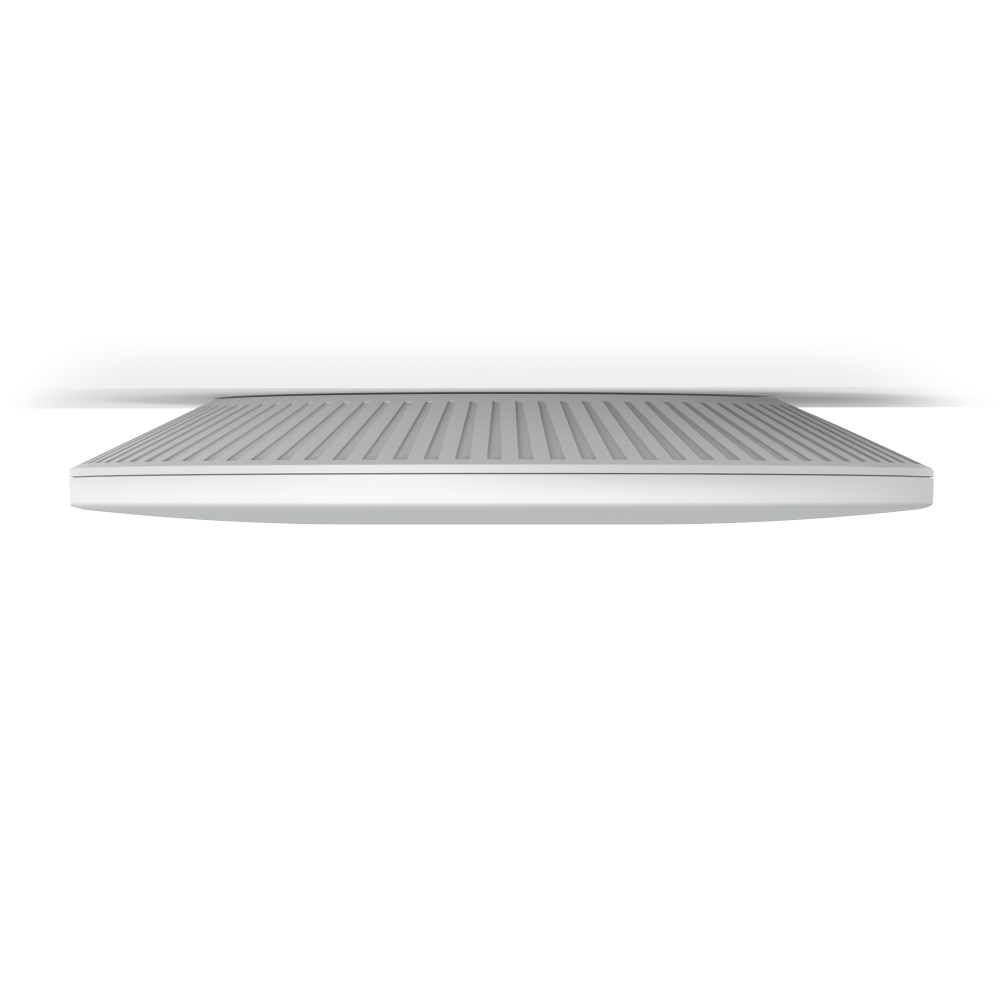

Mounting
- Ceiling /Wall Mounting (Kits included)
Wireless Features
Coverage
- 185 m2 (2000 ft.2)
Concurrent Clients
- 510+
Wireless Standards
- IEEE 802.11ax/ac/n/g/b/a
Frequency
- 2.4 GHz and 5 GHz
Signal Rate
- 5 GHz: Up to 4804 Mbps
- 2.4 GHz: Up to 1148 Mbps
Wireless Functions
- 1024-QAM
- 4 x Longer OFDM Symbol
- OFDMA
- Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS (WMM)
- MU-MIMO (4x4 MU-MIMO DL&UL)
- MIMO [4x4 (2.4G and 5G) MU-MIMO; 4x4 (2.4G and 5G) SU-MIMO]
- HE160 (160 MHz Bandwidth) ‡
- Seamless Roaming (802.11k/v/r) §
- Omada Mesh §
- Band Steering
- Load Balance
- Airtime Fairness
- Beamforming
- Rate Limit
- Reboot Schedule
- Wireless Schedule
- Wireless Statistics based on SSID/AP/Client
Wireless Security
- Captive Portal Authentication §
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Rogue AP Detection
- 802.1X Support
- WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
- CE:
- < 20 dBm (2.4 GHz, EIRP)
- < 23 dBm (5 GHz, band1 & band2, EIRP)
- < 28 dBm (5 GHz, band3, EIRP)
- FCC:
- < 26 dBm (2.4 GHz)
- < 26 dBm (5 GHz)
Management
Omada App
- Yes
Centralized Management
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller
- Omada Cloud-Based Controller
Cloud Access
- Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts
- Yes
LED ON/OFF Control
- Yes
Management MAC Access Control
- Yes
SNMP
- v1, v2c, v3
System Logging Local/Remote Syslog
- Local/Remote Syslog
SSH
- Yes
Web-based Management
- HTTP/HTTPS
L3 Management
- Yes
Multi-site Management
- Yes
Management VLAN
- Yes
Zero-Touch Provisioning
- Yes. Require the use of Omada Cloud-Based Controller.
Other Specifications
Certification
- CE,FCC,RoHS
System Requirements
- Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment
- Operating Temperature: 0°C – 40°C (32°F – 104°F)
- Storage Temperature: -40°C – 70°C (-40°F – 158°F)
- Operating Humidity: 10% – 90% RH non-condensing
- Storage Humidity: 5% – 90% RH non-condensing
Package Contents
- EAP683 UR Access Point
- Ceiling/Wall Mounting Kits
- Installation Guide
